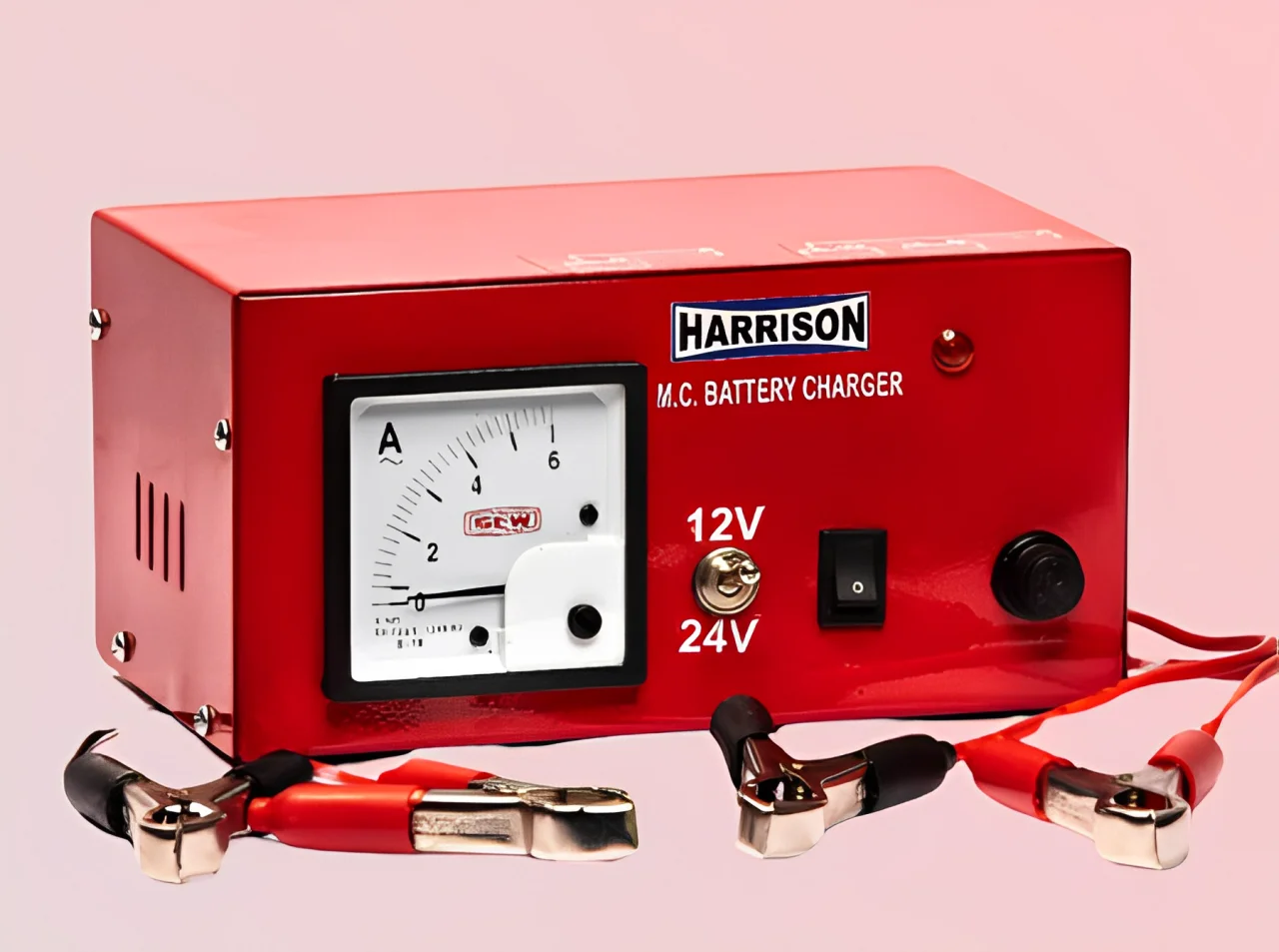

Product Name:Battery Charger
KAV:2V – 400V /1A-100A Battery Chargers as per customer requirements
Product Detials: AR Power Brand
AR Power provides versatile battery chargers designed to meet diverse customer requirements. Our battery chargers are available in various specifications, including KAV 2V – 400V and current ratings ranging from 1A to 100A. Whether you need a charger for automotive, industrial, or marine applications, AR Power has the solution to ensure efficient charging and prolonged battery life. Trust AR Power for reliable battery chargers tailored to your specific needs.
| TECHNICAL VIEW | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Voltage | 12V 24V 30V 48V 110V 220V ETC | ||||||
| Nominal Current | 5-400A 5- 400A 5-400A 5- 400A 5-400A 5- 400A | ||||||
| Input Supply | Single phase 240V± 10% 50Hz ± 5% for output power < 5KVA , Three phase 415V ± 10% 50Hz ± 5% for output power>5KVA | ||||||
| Output Voltage | 9-16V 18-35V 24-46V 40-68V 88-150V 180-270V | ||||||
| Noise and Ripple | < 0.5% for switch-mode, < 2% for Thyristor controlled – specified at full load and without battery connected | ||||||
| Static Voltage Regulation | ± 1% for 0-100% load variation, ± 10% AC input voltage variation and 5% AC input frequency variation | ||||||
| Dynamic Voltage | ± 1% for 0-100% load variation, ± 10% AC input voltage variation and 5% | ||||||
| Current Regulation | ± 1% | ||||||
| Protection | Input Fuse/Circuit Breaker, Charger Output Fuse/Circuit Breaker, Charger Current Limit, Dual Battery Current Limit, AC Surge Suppression, Short Circuit Protection, Reverse Battery Polarity Protection | ||||||
| Alarms (Optional) | Mains fail, Charger Fail, DC High, DC Low, Under/Over Voltage Trip, Earth Fault, Battery Disconnected, Battery Fail (including hi impedance), Battery Over Temperature, Blown Fuse, Common Alarm Relay, Common Alarm Buzzer | ||||||
| Metering | Charger Voltage, Charger Current, Load Voltage, Load Current *Meter accuracy 1%* | ||||||
| Options | Additional Meters/, DC distribution board | ||||||
| Physical | Floor mount or free standing powder coated metal cabinet *Dimensions depend on charger output rating and associated battery requirements* | ||||||
| Provision of cabling | Provided up to 30KVA. For higher capacities optional at extra cost | ||||||
| Environmental | 0-60°, up to 95% humidity | ||||||
| Operating Temperature | 0-45° C | ||||||
High Voltage Regulation, Very Very Low Ripple Current, No Reverse Current flows when AC is off, Battery Reverse Polarity Protection, Current Limit is Set at Factory at 110% IDC, High/Low Cut off, Digital Display, Ensures Reliability Through Design.
Generating Stations, Transmission Substations, Telecom Networks, Distribution Centres, Computer Installations, Railways, Military, Manufacturing Plants, Airports, Etc…
