Product Name: Servo Stabilizers
KVA: 1 KVA to 100 KVA
Details: Air Cooled – AR Power Brand
Product Name: Servo Stabilizers
KVA: 30 KVA to 2000 KVA
Details: Air Cooled – AR Power Brand
Line interactive UPS systems are a popular choice for businesses seeking reliable power protection. These UPS units offer an efficient solution that interacts with the incoming power supply to regulate voltage fluctuations and provide seamless backup power during outages. With their built-in automatic voltage regulation (AVR) technology, line interactive UPS systems continuously monitor the input voltage levels and make necessary adjustments to ensure consistent output power, safeguarding sensitive electronic equipment from damage.
Ranges from 1 KVA to 30 KVA

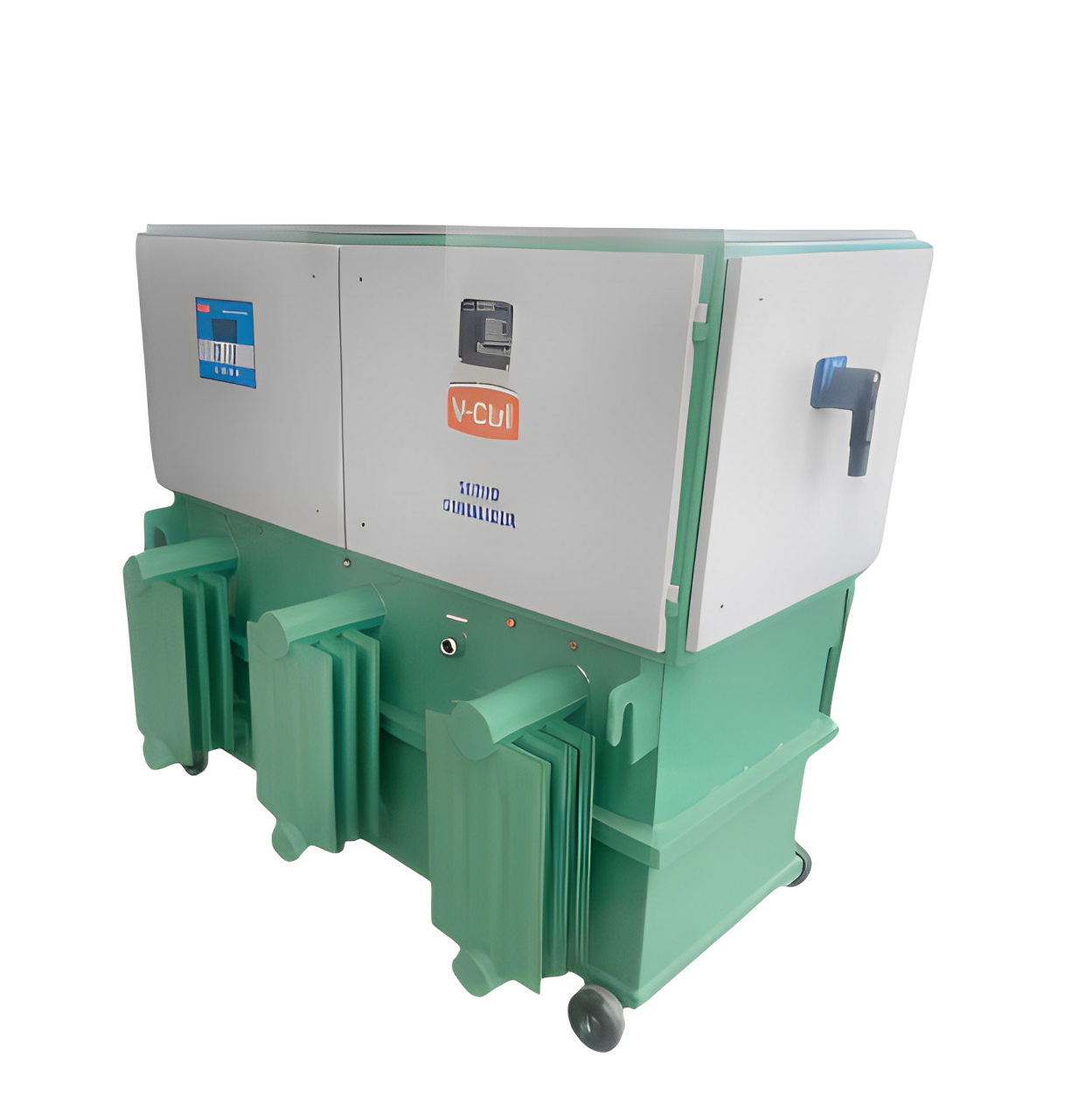

Ranges from 30 KVA to 2000 KVA - Oil cooled
Ranges from 3 KVA to 100 KVA - Air cooled
| TECHNICAL VIEW | |||||||
|---|---|---|---|---|---|---|---|
| Capacity | 1 KVA to 2000 KVA | ||||||
| Input Voltage Range | Normal Range170-270/ 295 V – 465 V Narrow Range 190-465/360 V – 460V Wide Range 140-270/245V-465V Other Ranges can be customized | ||||||
| Output Voltage | 230V/400 V +/- 1% | ||||||
| Input Frequency | 47 to 53 Hz | ||||||
| Correction Speed | Average 60 V per sec. phase to phase | ||||||
| Protections | (a) Electronic over & under voltage trip with time delay (b) Overload & short circuit protection through MCB up to 30KVA. For higher capacities optional at extra cost (c) Spike / RF suppressor extra cost | ||||||
| Operating temperature | 0 deg C – 45 deg C | ||||||
| Voltmeter | LCD display to read phase to phase input/output voltage and output current | ||||||
| Effect of load power factor on Output Voltage | Nil | ||||||
| Nature of cooling | Natural air cooled up to 100 KVA / Oil cooled above 50 KVA | ||||||
| Single – phasing Prevention | Provided | ||||||
| Annunciation panel | Non-Latching led indications Caution – Input High/ Input Low | ||||||
| Efficiency | >98% | ||||||
| Manual bypass | Provided up to 30KVA. For higher capacities optional at extra cost | ||||||
| Provision of cabling | Input and Output cable termination with provisions for fixing cable glands | ||||||
| Servo motor drive | Rugged AC step synchronous motor | ||||||
CNC machines, Textile machinery , Large deep freezers, Packaging machines, Lifts & elevators, Air conditioning package units and plants , Medical equipments , Printing machines , Entire LT line stabilization for factories / buildings / housing societies , Packaging machines , Any other microprocessor based machines.
